| 品牌 | MakerBot | 型號 | Replicator Z18 | 適用原材料 | PLA |
| 打印精度 | 0.1mm | 成型方法 | FDM | 打印尺寸 | 305*305*457mm |
| 噴嘴直徑 | 0.4mm | 層厚 | 0.1-0.3mm | 定位精度 | Z軸2.5微米；XY軸11微米 |
| 加熱板溫度 | 無 | 噴頭溫度 | 230 | 運動速度 | 90mm/s |
| 實際功率 | 350W | 輸入電壓 | 100-240V（V） | 產品外型尺寸 | 493*565*854mm |
| 產品重量 | 41kg | 適用場景 | 快速成型、打印服務 | 售后服務 | 一年 |
到貨了！
MakerBot Replicator Z18擁有巨大的打印體積和同類打印機中高的性價比，是超大物體打印的佳選擇，3D打印機中的巨無霸！
技術參數
TECHNICAL SPECIFICATIONS
PRINTING
PRINT TECHNOLOGY
FUSED DEPOSITION MODELING
BUILD VOLUME
30.5 L X 30.5 W X 45.7 H CM
[12.0 L X 12.0 W X 18.0 H IN]
42,512 CUBIC CENTIMETERS
[2,592 CUBIC INCHES]
LAYER RESOLUTION
100 MICRONS [0.0039 IN]
FILAMENT DIAMETER
1.75 MM [0.069 IN]
FILAMENT COMPATIBILITY
MAKERBOT PLA FILAMENT
LARGE SPOOL
0.9 KG [2.0 LB]
NOZZLE DIAMETER
0.4 MM [0.015 IN]
PRINT FILE TYPE
.MAKERBOT
TEMPERATURE
AMBIENT OPERATING TEMPERATURE
15-32°C [60-90°F]
STORAGE TEMPERATURE
0-38°C [32-100°F]
SIZE & WEIGHT
PRODUCT DIMENSIONS
49.3 W X 56.5 D X 85.4 H CM
[19.4 W X 22.2 D X 33.6 H IN]
SHIPPING BOX
65.0 X 71.9 X 102.9 CM
[25.6 X 28.3 X 40.5 IN]
PRODUCT WEIGHT
41 KG [90 LBS]
SHIPPING WEIGHT
(INCLUDES ACCESSORY KIT)
52 KG [115 LBS]
MECHANICAL
CONSTRUCTION
POWDER-COATED STEEL WITH PC-ABS AND ALUMINUM COMPOSITE MATERIAL
BUILD SURFACE
INJECTION MOLDED PC-ABS
STEPPER MOTORS
1.8° STEP ANGLE WITH 1/16
MICRO-STEPPING
XY POSITIonING PRECISION
11 MICRONS [0.0004 IN]
Z POSITIonING PRECISION
2.5 MICRONS [0.0001 IN]
SOFTWARE
SOFTWARE BUNDLE
MAKERBOT DESKTOP
SUPPORTED FILE TYPES
STL, OBJ, THING, MAKERBOT
OPERATING SYSTEMS
WINDOWS (7+)
MAC OS X (10.7+)
LINUX (UBUNTU, FEDORA)
ELECTRICAL
POWER REQUIREMENTS
100-240 V; 5.4-2.2 A;
50/60 HZ; 350 W

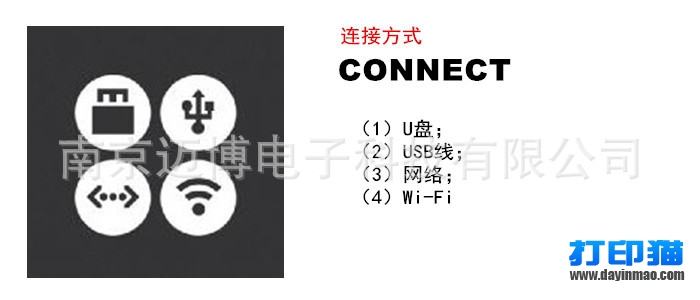

CONNECTIVITY
USB, ETHERNET
(WI-FI COMING SOON)

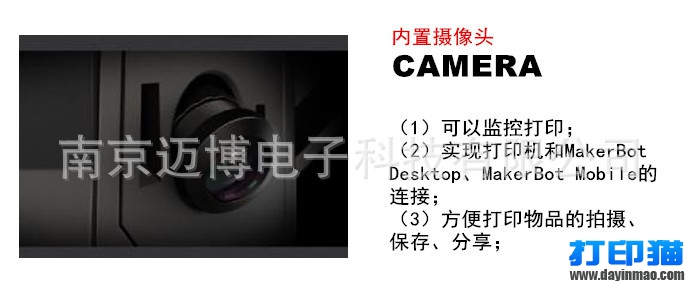

CAMERA
CAMERA RESOLUTION
320 X 240
